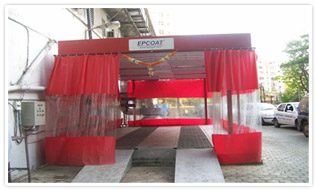

Epcoat Prep-Tech Booth
Prep-Tech Booth
These booths are that most flexible and productive systems to complement a refinish Paint Booth. Epcoat Preptec Booths are designed for body shop that need flexible and efficient preparation environment for their refinish operations. Multiple design and choice of SIDE DRAFT or DOWNDRAFT air flow configuration available to meet the needs of any body shop requirement.
Important Features of Prep-Tech Booths
Efficient and easy to maintain supply/ exhaust blower and Motor system.
Epcoat uses TEFC ‘CROMPTON’ make Electric Motors on all its supply/exhaust blowers.
Motors carry a warranty of 1 year against any defects and workmanship.
Service available across the country for repairs.
Blowers are constructed with precision computerized balanced which runs quietly and efficiently.
Powerful and precision engineering solutions.
Epcoat’s Preptec booths are designed in house using latest drawing software.
Epcoat uses imported Vinyl PVC curtain in all PREPTEC booth.
Through quality inspection prior to dispatch by technical department.
Types of Prep-Tech Booths
Pressurised Downdraft with Metal Basement.
Non pressurized Downdraft with Metal Basement.
Non pressurized Downdraft with Civil Basement.

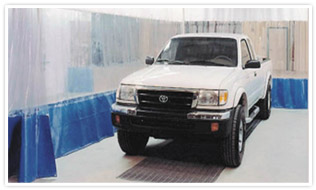

Prep-Tech Booth
These booths are that most flexible and productive systems to complement a refinish Paint Booth. Epcoat Preptec Booths are designed for body shop that need flexible and efficient preparation environment for their refinish operations. Multiple design and choice of SIDE DRAFT or DOWNDRAFT air flow configuration available to meet the needs of any body shop requirement.
Important Features of Prep-Tech Booths
Types of Prep-Tech Booths
Pressurised Downdraft with Metal Basement.
In it’s the PREPTEC booth wraps the component in a high volume flow of clean, warm air. Airflow from the overhead filters envelops the component and is drawn out through strategically located paint arrestors. This downdraft flow, the over spray down under the component into a pit instead of along the length of the component being sprayed.
This downdraft design is acknowledged by quality conscious painters as the best way of eliminating over spray, providing improved painter safety, and giving the best possible finish.
Technical Specification
WORKING DIMENSIONS
CEILING FILTERS
PRIMARY FILTERS
BASE FILTERS
FILTER MAKE
LIGHTING
MAX.PERMISSBLE TEMPERATURE
AIR SUPPLY BLOWER FAN
FLOOR GRILL –2 ROWS
ELECTRICITY MAIN SUPPLY
CONTROL BOX
EXHAUST BLOWER
Curtain mounting
CEILING FILTERS
PRIMARY FILTERS
BASE FILTERS
FILTER MAKE
LIGHTING
MAX.PERMISSBLE TEMPERATURE
AIR SUPPLY BLOWER FAN
FLOOR GRILL –2 ROWS
ELECTRICITY MAIN SUPPLY
CONTROL BOX
EXHAUST BLOWER
Curtain mounting
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
6000mm(L) x 4000 mm (W) x 2.5 mm(H)
6750 mm (L) x 4000 mm( W) x 2.5 mm (H)
NON WOVEN EU5
Synthetic Cloth Media
NON WOVEN EU3
Libaltex (Belgium) or equivalent
NEON TUBE 40W / 230 V TUBELIGHTS PHILIPS TRUE LIGHTS AND CHOKES WILL BE PROVIDED
70OC
18000 CU.M/HR X 7.5 HP CENTRIFUGAL TYPE WITHCROMPTON OR Equivalent MAKES ELECTRIC MOTOR STANDARD TEFC NON-FLAME PROOF
LOAD BEARING CAPACITY 2.5 TONES
415V, 3PH, 50 C/S, AC4 WIRE SYSTEM
CONSISTING OF 1 HOUR METER, 2 EMERGENCY STOP, 3 ILLUMINATION SWITCH and 7 MAIN SUPPLY SWITCH
2 HP CAPACITY TUBE AXIAL FAN
PVC Curtain will be Mounted on heavy duty runner and the same will be mounted on heavy duty Channel.
6750 mm (L) x 4000 mm( W) x 2.5 mm (H)
NON WOVEN EU5
Synthetic Cloth Media
NON WOVEN EU3
Libaltex (Belgium) or equivalent
NEON TUBE 40W / 230 V TUBELIGHTS PHILIPS TRUE LIGHTS AND CHOKES WILL BE PROVIDED
70OC
18000 CU.M/HR X 7.5 HP CENTRIFUGAL TYPE WITHCROMPTON OR Equivalent MAKES ELECTRIC MOTOR STANDARD TEFC NON-FLAME PROOF
LOAD BEARING CAPACITY 2.5 TONES
415V, 3PH, 50 C/S, AC4 WIRE SYSTEM
CONSISTING OF 1 HOUR METER, 2 EMERGENCY STOP, 3 ILLUMINATION SWITCH and 7 MAIN SUPPLY SWITCH
2 HP CAPACITY TUBE AXIAL FAN
PVC Curtain will be Mounted on heavy duty runner and the same will be mounted on heavy duty Channel.
Non pressurized Downdraft type PREP-TEC booth with Civil/Metal basement
In these types of booth with downdraft airflow, exhaust plenum is “pit or basement which draws overspray air down through filters and then channels underground to be recycled. These exhaust systems include fans with sufficient power to move air through the system. Exhaust fan is mounted in the exhaust unit.
Technical Specification
Internal Dimensions appx.
Structure
Construction.
Suction type
Painting.
Exhaust Blower
Gratings
Structure
Construction.
Suction type
Painting.
Exhaust Blower
Gratings
:
:
:
:
:
:
:
:
:
:
:
:
:
:
:
6000mm L x 4000mm W x 2500mm H
6750mm L x 4000mm W x 2500mm H
Structural Supports of Sq.Tube/Angles will be provided or Hanging supports will be provided.
Four side including Back side PVC Curtain will be provided.
DownDraft type arrangement will be provided. Basement : Civil or Metal Basement
All the parts of the systems will be pre coated/powder coated.
5hp high capacity Tube axial type Blower will be provided. Qty-1No.
Heavy duty Gratings will be provided.
6750mm L x 4000mm W x 2500mm H
Structural Supports of Sq.Tube/Angles will be provided or Hanging supports will be provided.
Four side including Back side PVC Curtain will be provided.
DownDraft type arrangement will be provided. Basement : Civil or Metal Basement
All the parts of the systems will be pre coated/powder coated.
5hp high capacity Tube axial type Blower will be provided. Qty-1No.
Heavy duty Gratings will be provided.
